4-9 column wax machine
*The above parameters are for reference only, please contact our sales department for exact parameters.
Keywords:
Category:
Product Description
Production of candle varieties: cylindrical candles, church candles, etc.
Table size: 930* 680mm
stroke range: 520mm
nominal pressure: 12T
candle diameter range: 60-100mm
candle height range: 150-225mm
hourly production range: 480 candles
Automatic powdering device: can also be equipped with automatic powder machine
candle top shape: umbrella top, flat top, steamed bun shape, church candle item
machine weight: 3000kg
machine size: 1750 * 10402090m
power configuration: 4.0kw voltage 380v
use: for wax powder as raw material pressed production cylindrical candles.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
4-9柱蜡机产品
 |
 |
 |
Cylindrical series pressing candle machine
According to the different needs of users, our column wax machine is divided into four varieties, ZHL2-4 (maximum diameter 2 inches; Maximum height 4 inches), DZHL3-6 (maximum diameter 3 inches; Maximum height 6 inches); ZHL4-9 (maximum diameter 4 inches; Maximum height 9 inches), DZHL6-9 (maximum diameter 6 inches; Maximum height 9 inches) isoclast wax machine. This series of equipment has a back-pressure function, and the upper and lower punches and pads are heated. According to customer requirements, only need to replace the cavity and other parts to produce cylindrical candles of different sizes (church candles), duck egg candles, spherical candles, etc. After packing, the entire process from compression molding to withdrawal is done automatically. The surface of the pressed candle is angular and clean. The candle product has a center hole for wearing the wick of the candle, which is convenient for wearing the wick. The manufacturer logo can be engraved on the lower die according to the customer's requirements, so that the bottom of your candle product is automatically pressed with a brand watermark.

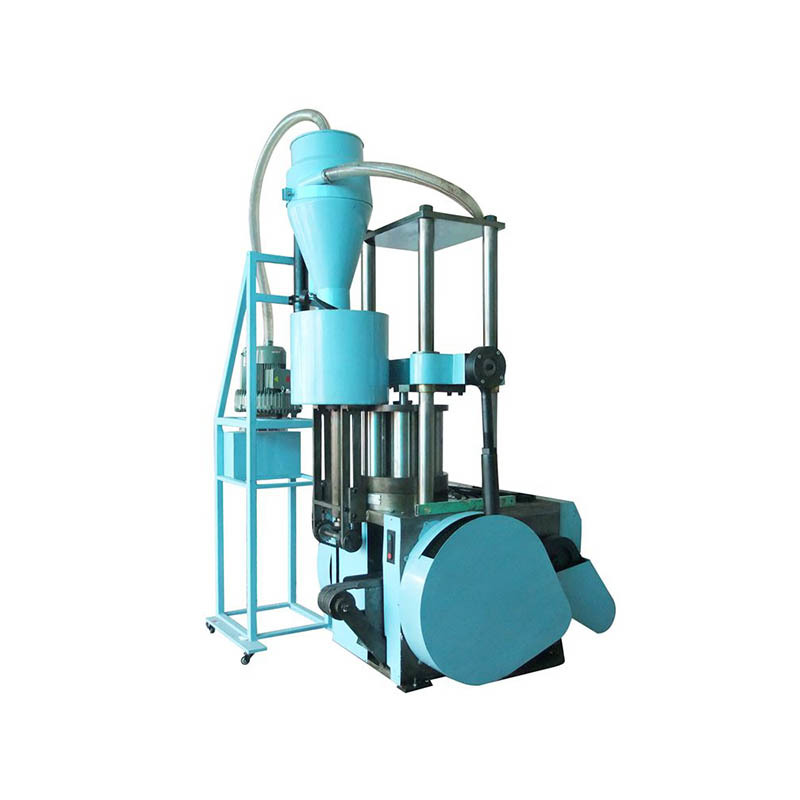

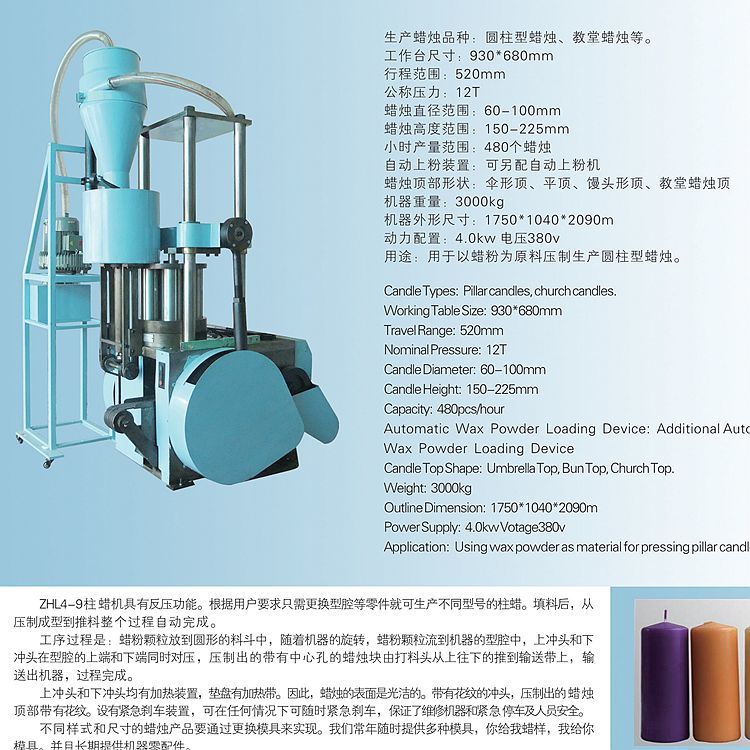

ZHL4-9 column wax machine (ZHL4-9 cylindrical candle machine)
has a backpressure function. According to user requirements, different types of column wax, church candles, ball candles, duck egg-shaped candles can be produced by simply replacing the parts such as the cavity. After packing, the entire process from compression molding to withdrawal is done automatically.
Product range: diameter 60mm- diameter 100mm; Height 150mm-225mm. Output: 480 pcs/h
|
|
|
|
