Double track filling machine
*The above parameters are for reference only, please contact our sales department for exact parameters.
Keywords:
Category:
Product Description
Production of candle varieties: various containers of candles, ghee lamps, crystal wax, boxed ghee lamps (including glass bottles, glasses, aluminum cups, plastic cups, iron cans, ceramic jars and other containers) and so on.

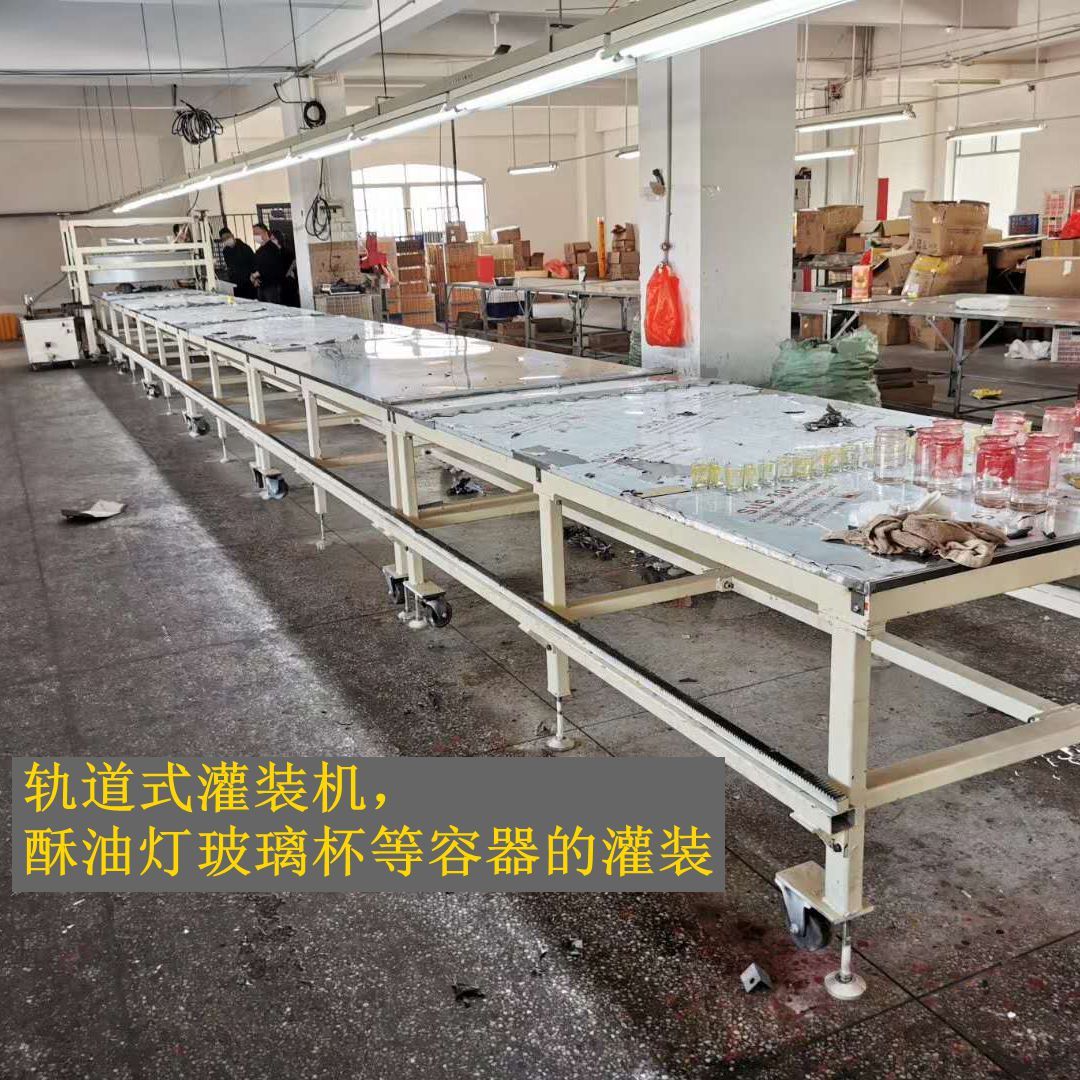

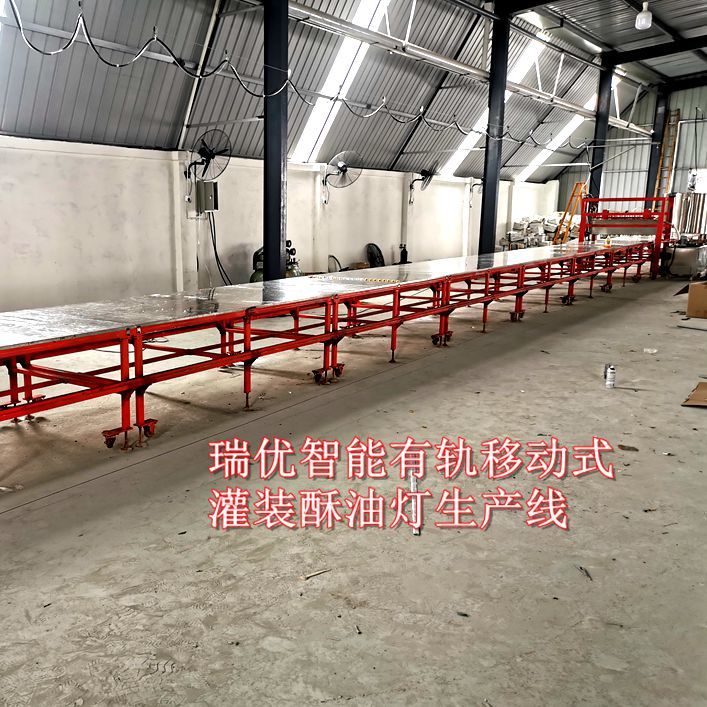

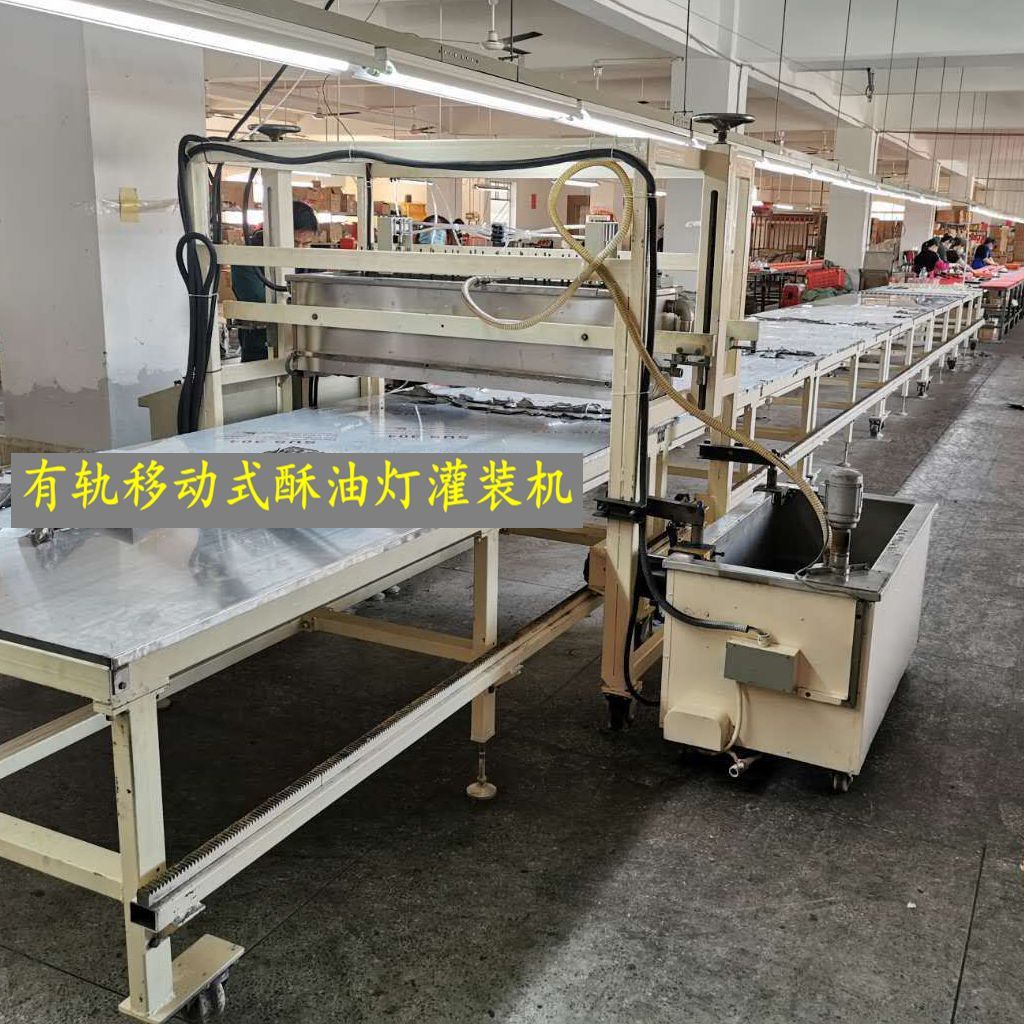

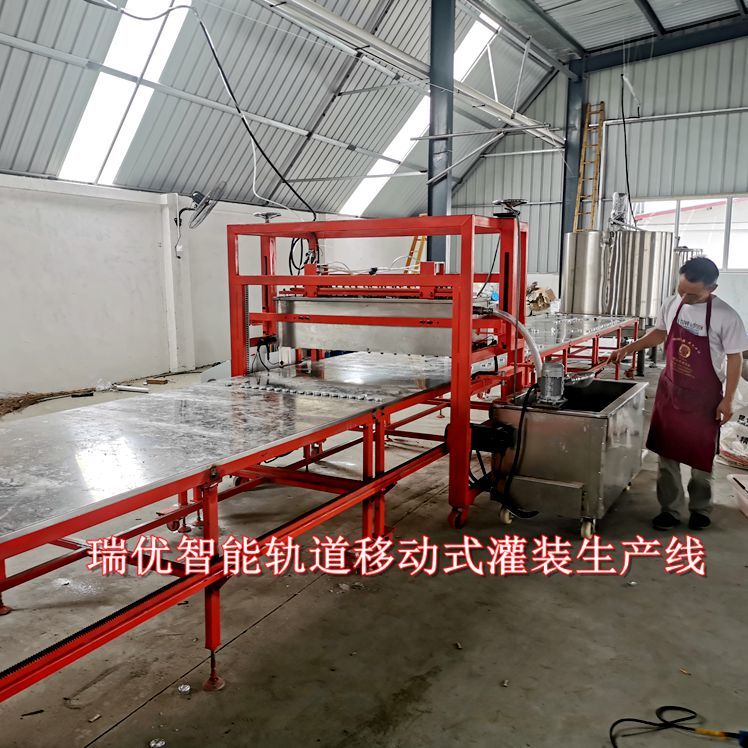

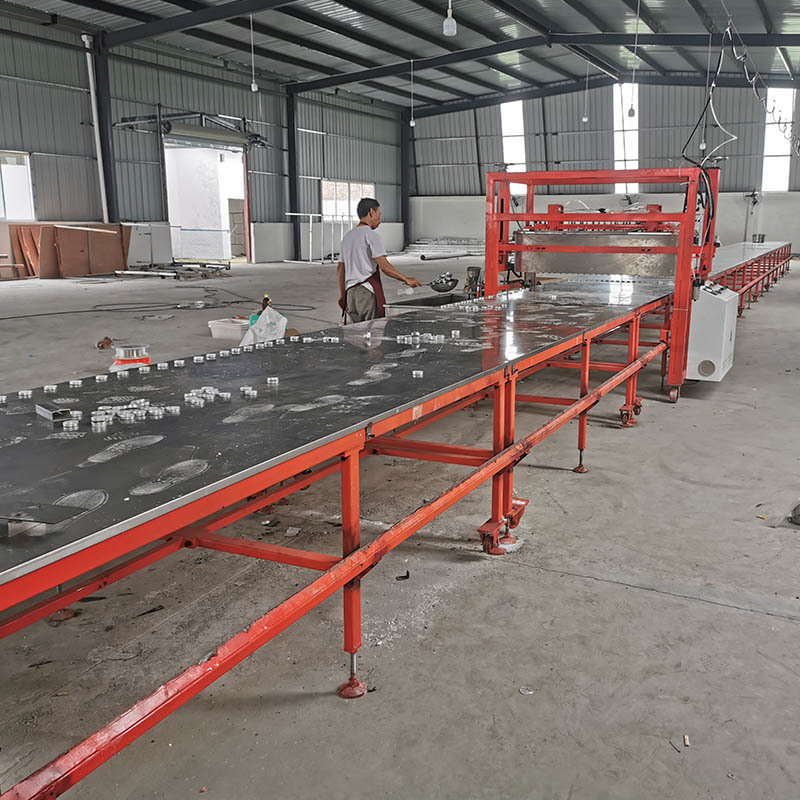

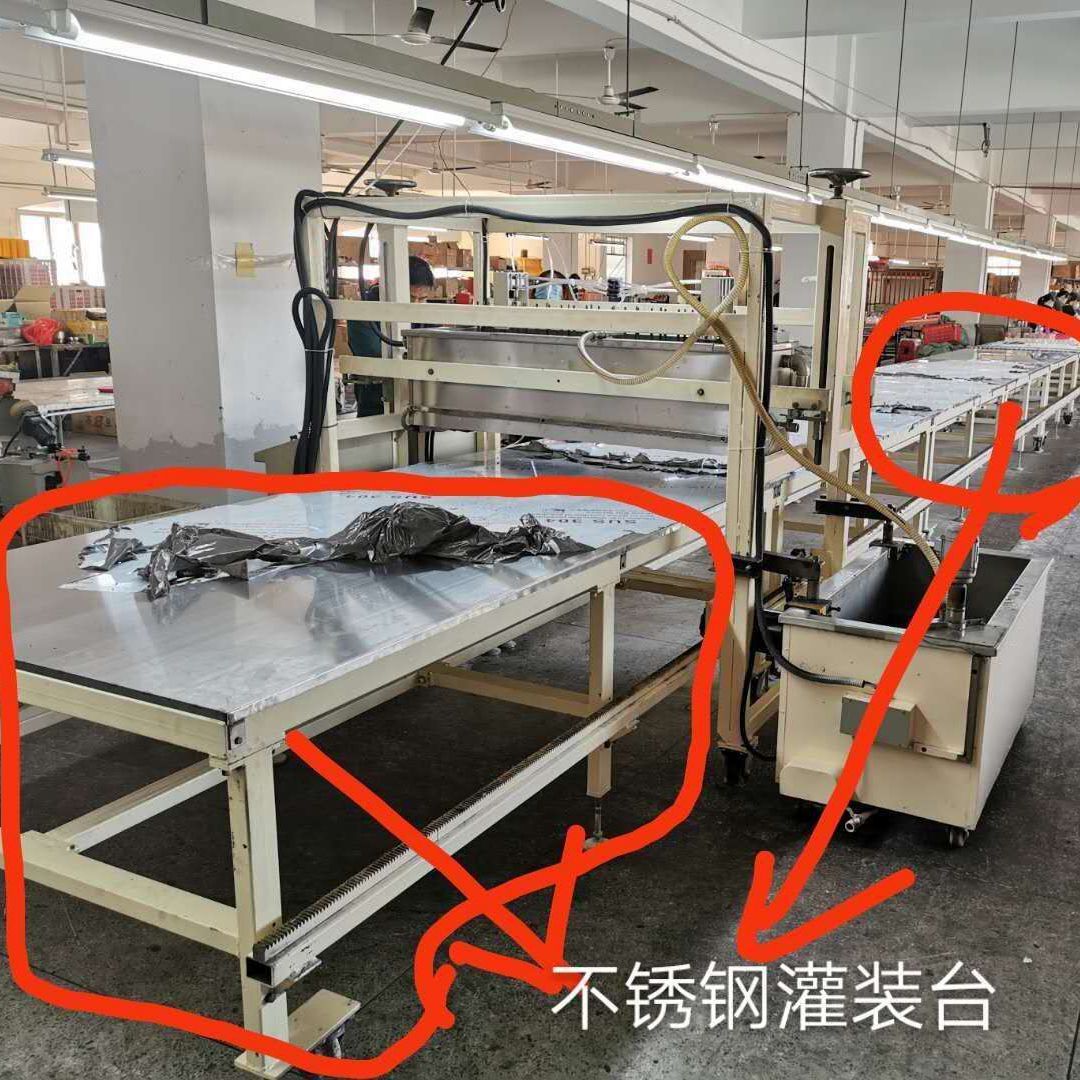

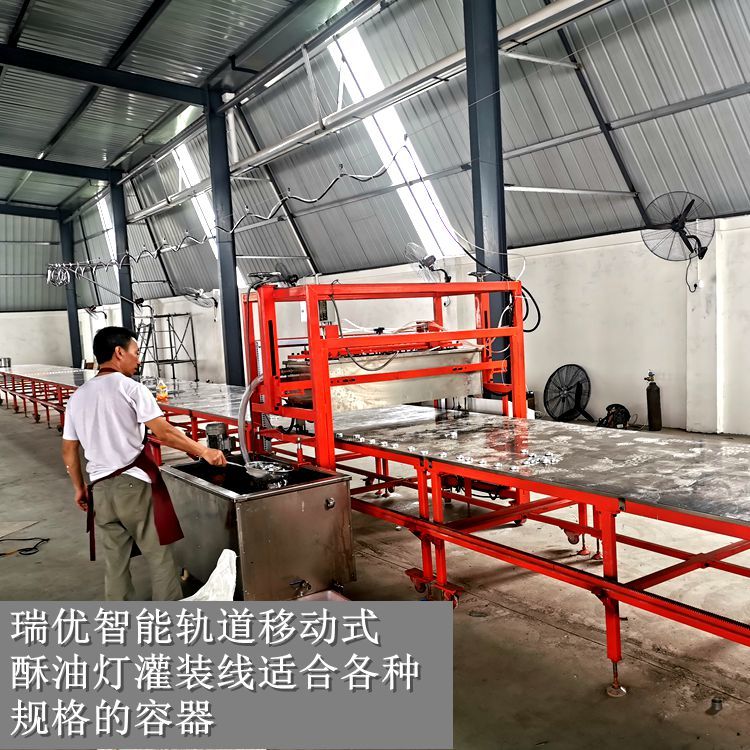

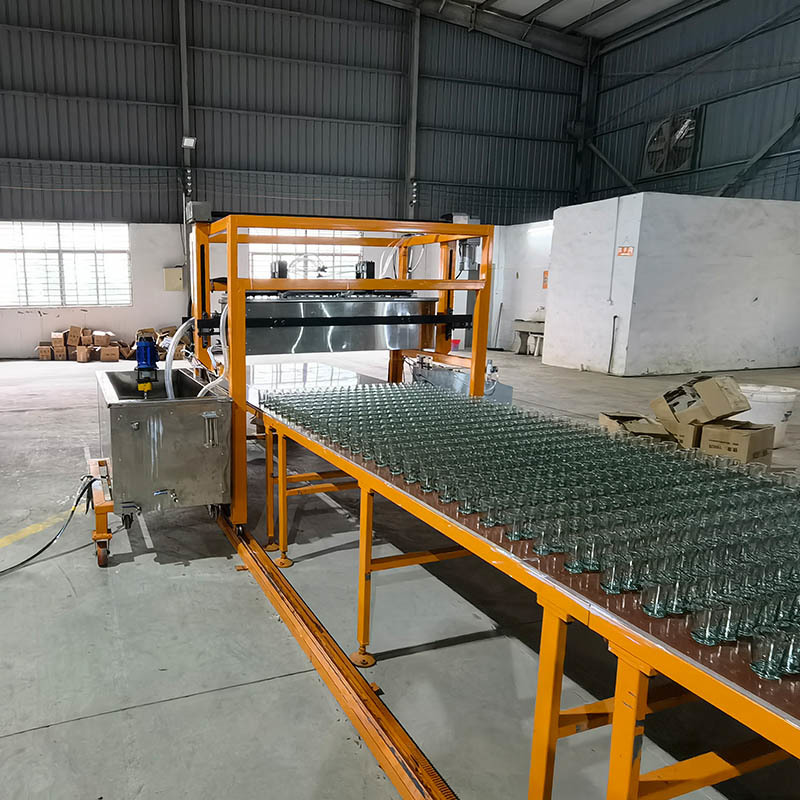

Filling line: it is composed of multiple stainless steel operating surfaces and double-track mobile filling machines, insulation pots, etc

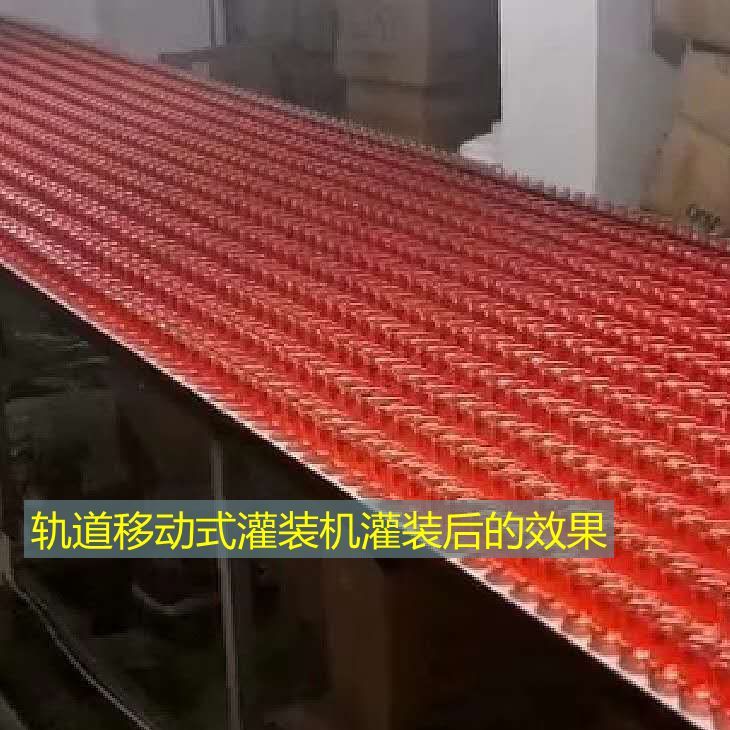

Ghee lamp completion process: the wax core wire → row of boxes→ can be filled in one or multiple times→ the finished ghee lamp after cooling
Insulation pot temperature range: 0-200 degrees Celsius (intelligent control temperature)
Insulation pot wax liquid filling capacity: 300 liters
Candle container diameter range: 0-110mm (can be customized according to customer needs)
Candle container height range: 0- 250mm (can be customized according to customer needs)
Hourly output range: 6000 speed adjustable (measured according to 37mm * 15mm tea wax)
Applicable raw materials: paraffin wax, crystal wax, ghee, stearic acid, carnauba wax, etc.
Average weight error of finished product: ≤0.2g
Weight of the whole line: 1000-4000kg
Machine dimensions: length, width and height 32m * 1.3m * 1.8m each section of stainless steel tabletop length and width is 2.44 * 1.22
Power configuration: total power of about 14kw; Among them, the dual-track mobile power is 1.5kw; the power supply voltage is 380v;

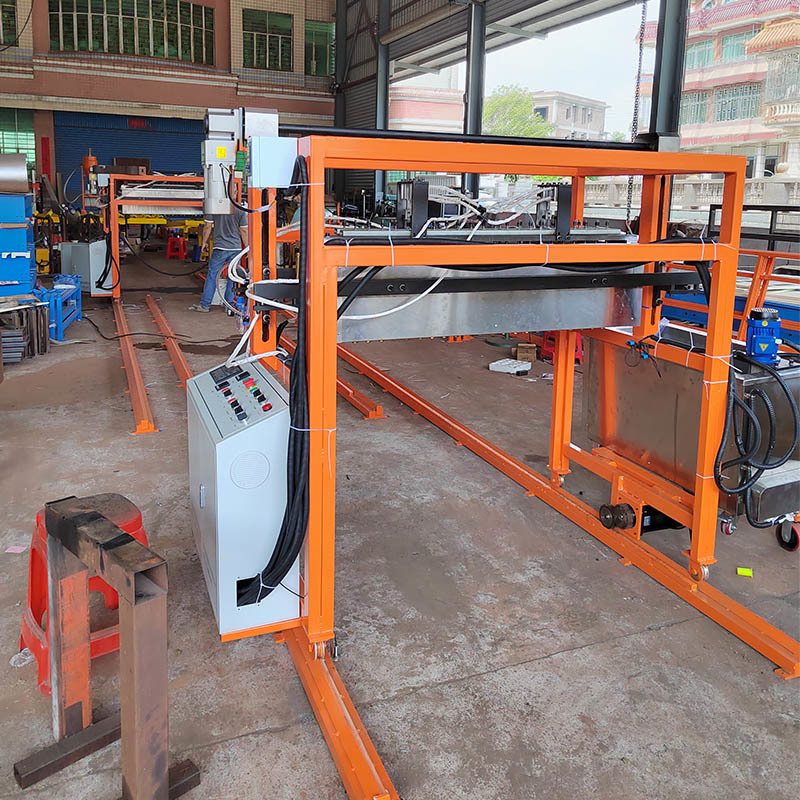

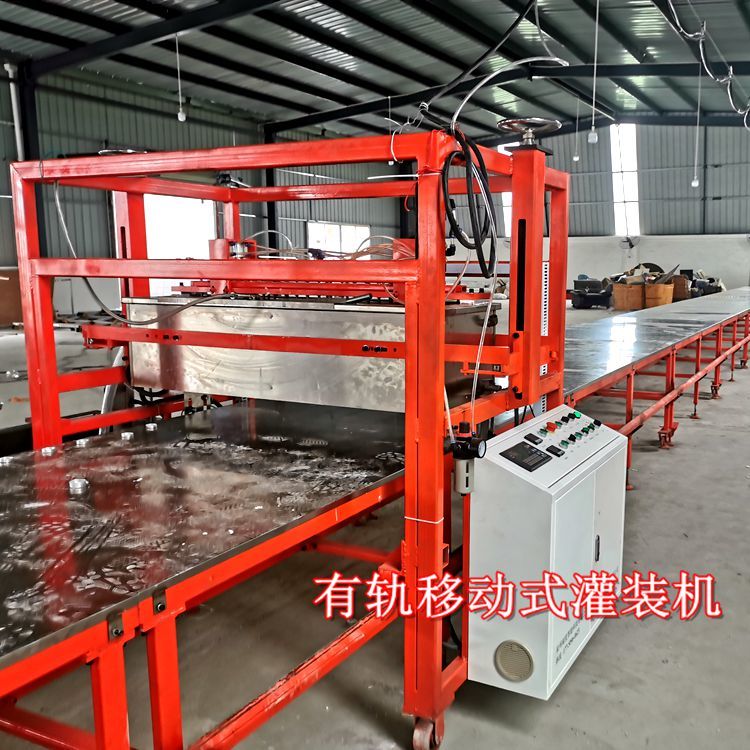

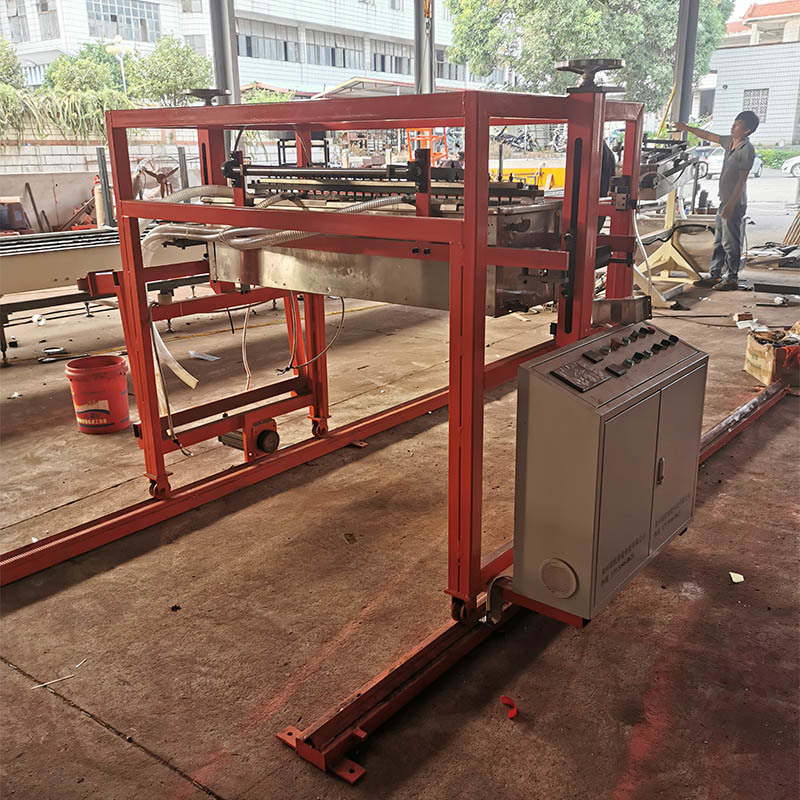

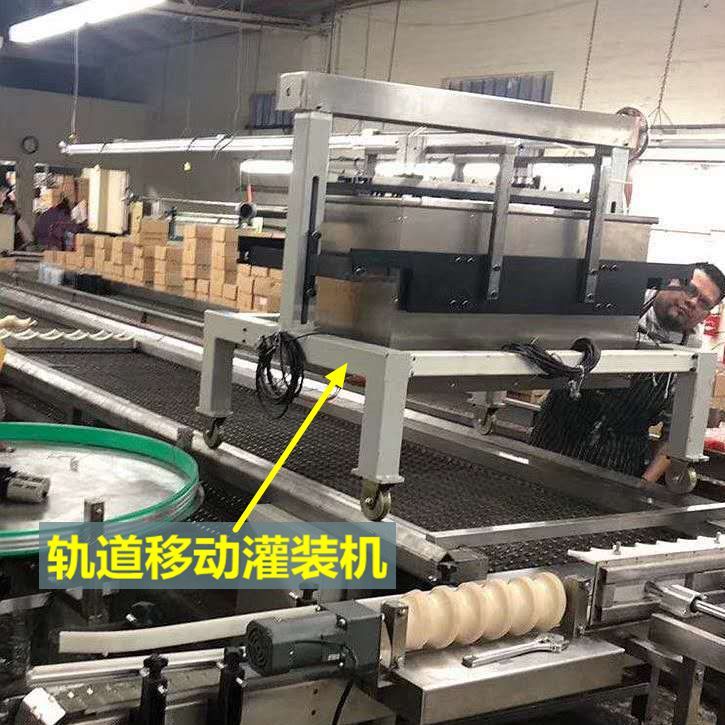

Uses: The machine adopts double track linear structure, smooth movement, no spillage of liquid, automatic detection of filling head automatic filling; The use of touch screen intelligent electronic control system, convenient to adjust the filling time, accurate filling, to adapt to a variety of different specifications of bottles and different viscosity of liquid filling needs; The filling nozzle of the combined filling assembly is very convenient for disassembly and cleaning. The configuration of the production line can be customized according to customer requirements
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
