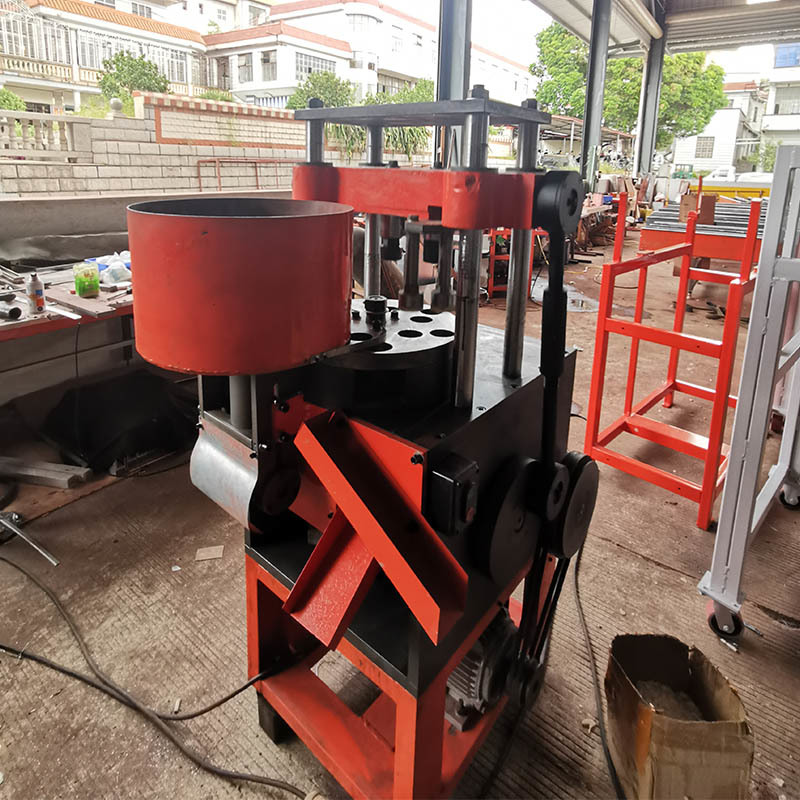

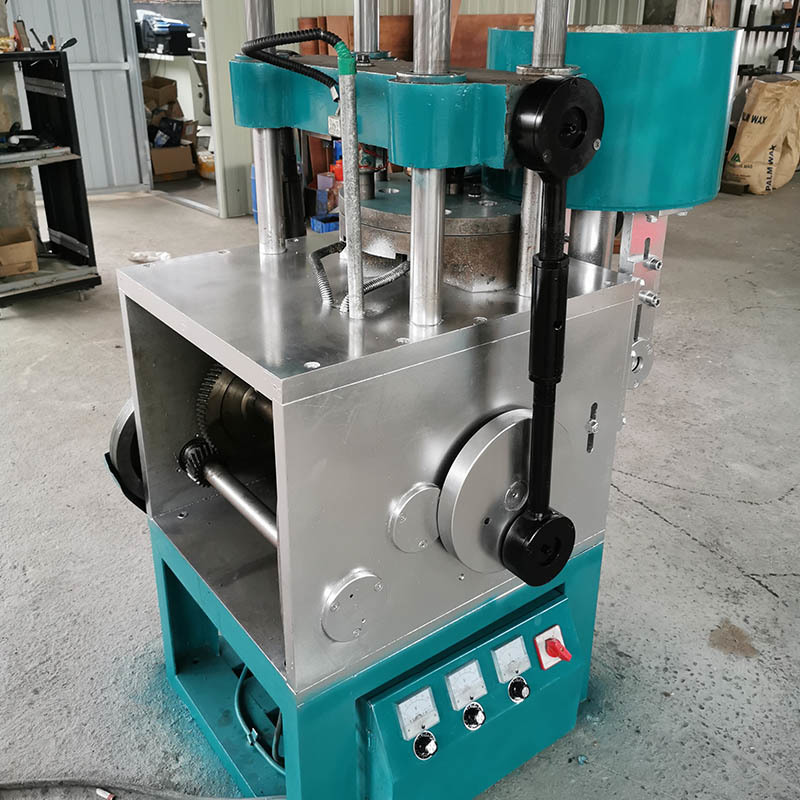

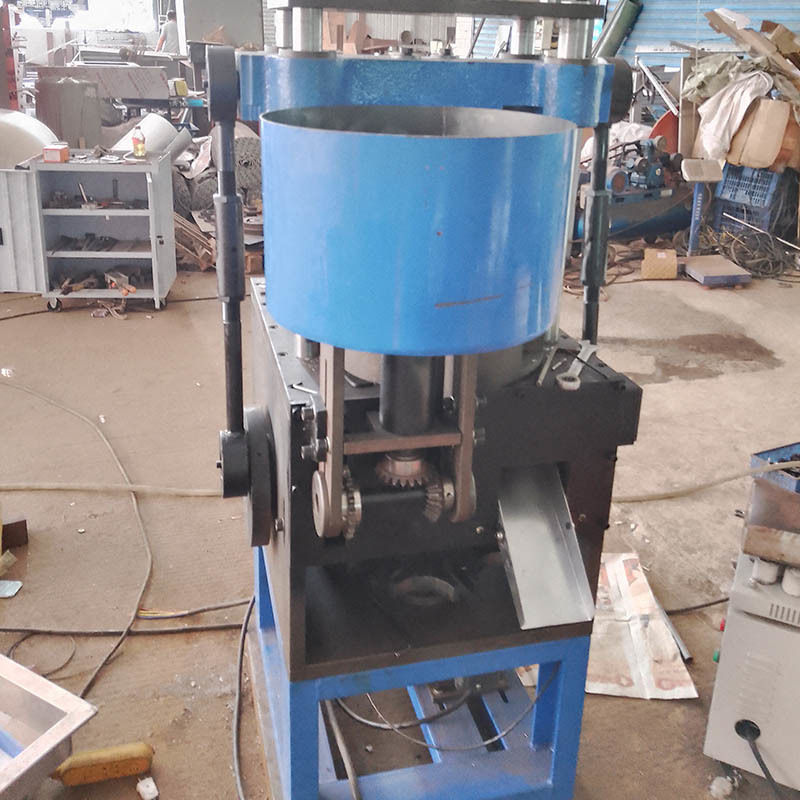

Multifunctional candle maker
*The above parameters are for reference only, please contact our sales department for exact parameters.
Keywords:
Category:
Product Description

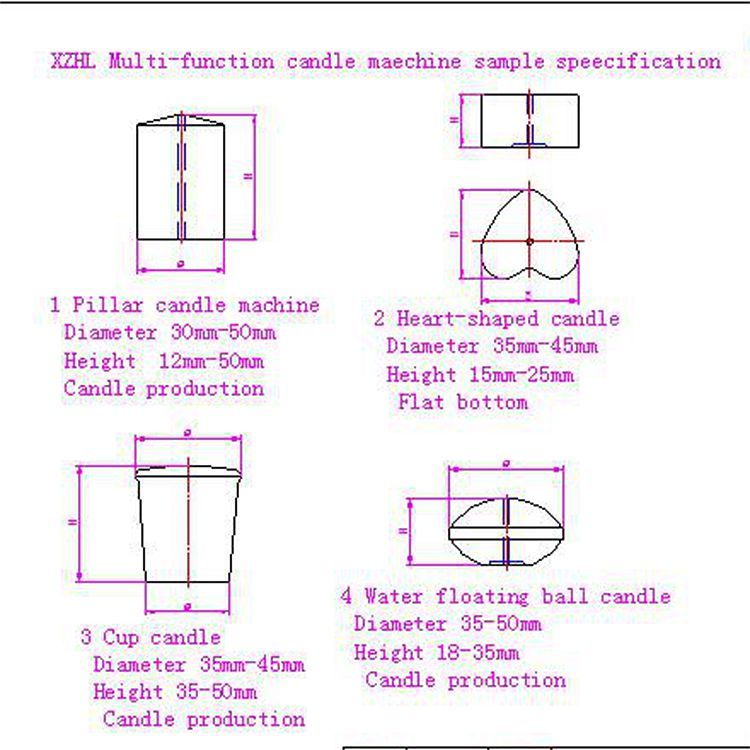

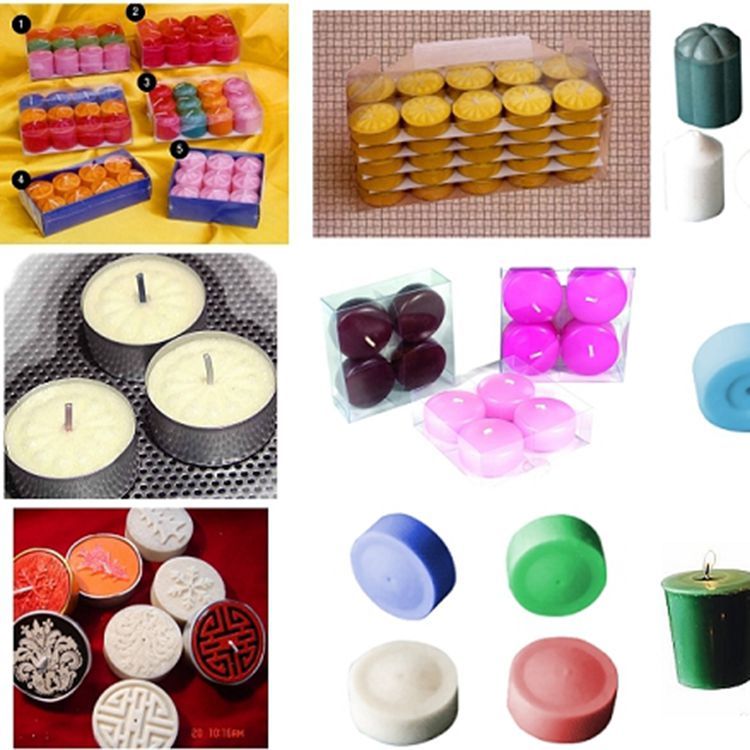

Production of candle varieties: white tea wax, cup wax, water float candle, small column candle, heart-shaped candle, flat top carved candle, flat engraved candle, etc
Table size: 550*660mm
Stroke range: 180mm
Nominal pressure: 3T
Candle diameter range: 30-50mm
Candle height range: 12-50mm
Hourly production range: 3000- 3300 candles
Automatic powdering device: Automatic powdering machine is configured on demand
Candle top shape: umbrella-shaped neck steamed bun neck flat neck church top candle, etc
MACHINE WEIGHT: 850kg
Machine dimension: 980*740*1500mm
Power configuration: 2.2kw voltage 380v or 220v (customized)
Uses: Used for the production of small cylindrical process candles pressed with wax powder as raw material
Has a back-pressure function. Users only need to replace the mold of the desired candle to produce different types of candles. From pressing to pushing out the wax block, the whole process is done automatically.

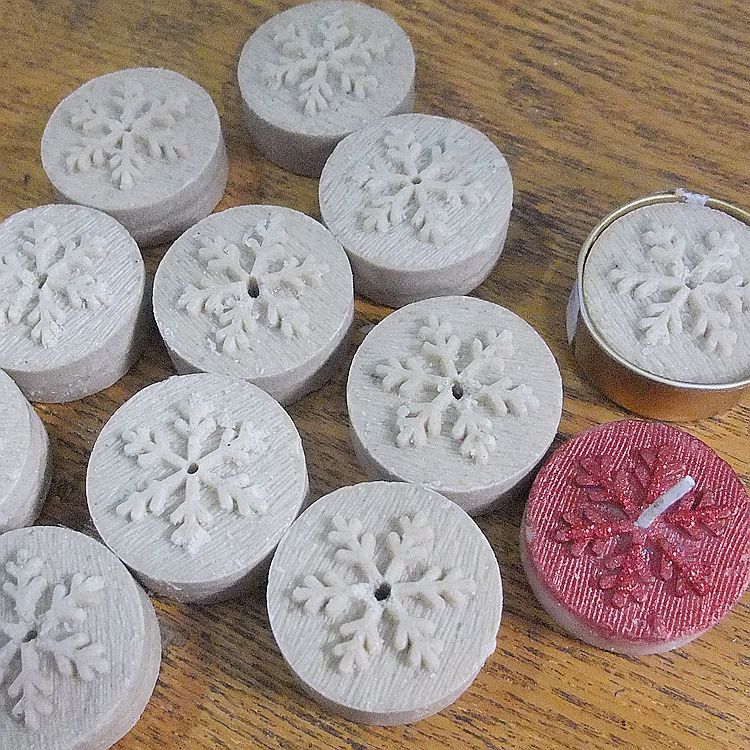

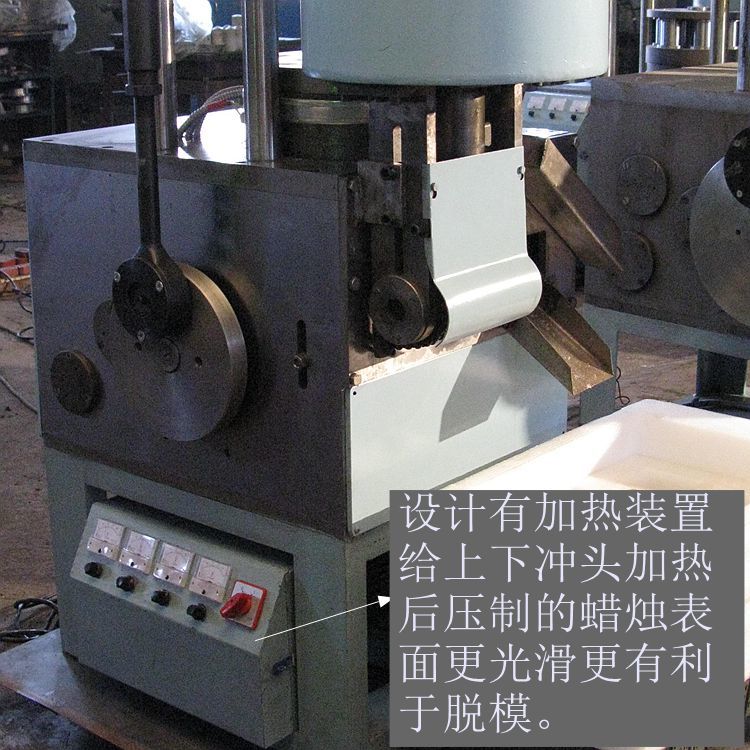

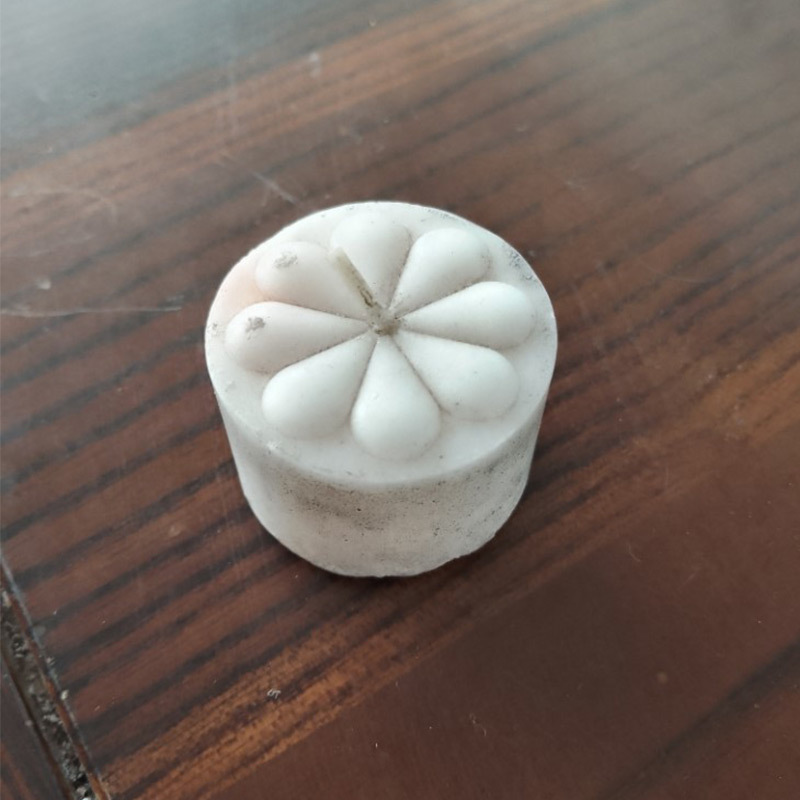

The process process is: wax powder particles into a circular hopper, with the rotation of the machine, wax powder particles flow into the mold of the machine, the upper punch and the lower punch in the upper and lower end of the mold at the same time, the pressed candle block with a center hole by the feeding head from top to bottom to the conveyor belt, transport out of the machine, the process is completed. Both the upper and lower punches have heating devices, and the pads have heating belts. Therefore, the surface of the candle is smooth. It can be used with a patterned punch, and the pressed candle has a pattern on the top.

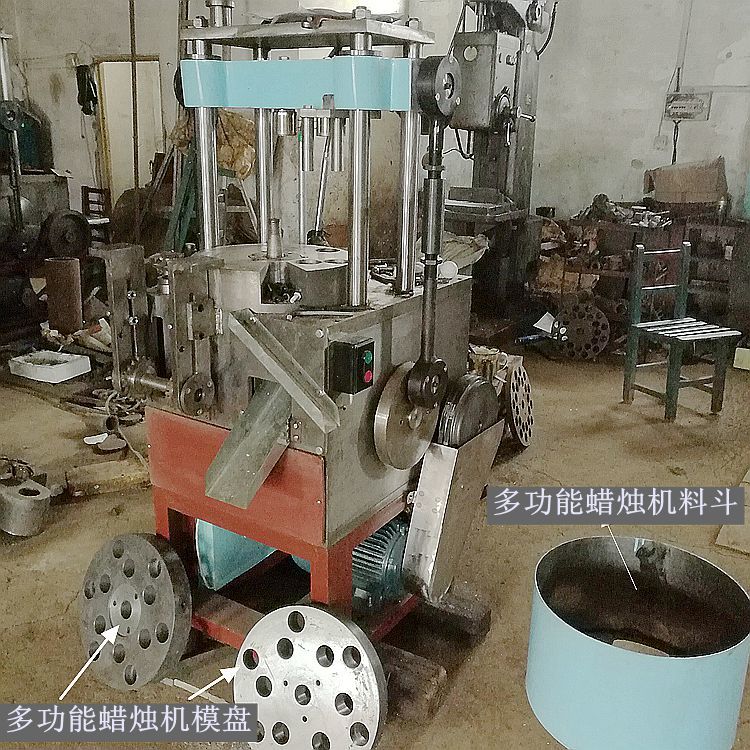

Candle products of different styles and sizes are achieved by changing the mold. We provide a variety of molds at any time of the year, you give me wax samples, I give you molds. And long-term supply of machine spare parts.
 |
 |
Multifunctional candle machine products
 |
 |
 |
 |
 |
 |
